Product Description

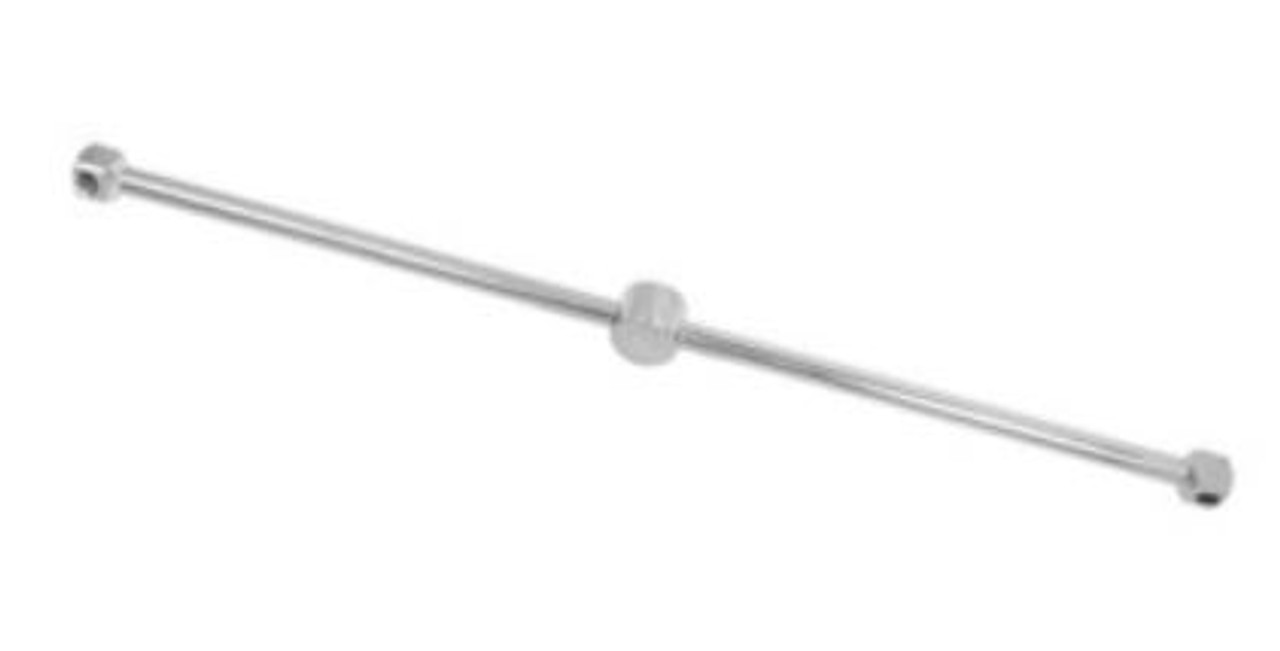

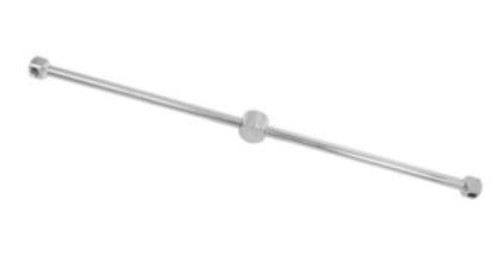

18" Diameter 2 Arm Turbo Rotor
Stainless Steel
W-Style
Turbo rotor arm
The turbo rotor arm, in conjunction with a swivel, begins to turn on its own from the water pressure. This product is found mainly in automatic car wash facilities in the area of rim and finish cleaning.
Welded by a robot (w-style)
The turbo rotor arms must withstand many revolutions per minute depending on their use. For this reason, a precision robot carries out the necessary welding tasks. The rotor arms are also counterbalanced and equilibrated. This prevents dangerous vibrations and ensures that the arms are absolutely still when in operation.
Light and robust (w-style)
The narrow diameter of the installed tubes makes the rotor lighter than regular models. The nozzle holders are extremely robust thanks to the precise welding seams made by a robot.
w-style
The champion among rotor arms. This design is chosen most often. Its shallow installation depth of just 20 mm measured from the nozzle connection to the rotary union connection is one of its strongest advantages. It features a fixed yet optimally set spray angle.
h-style
A classic and somewhat older design with an installation depth of 58 mm measured from the nozzle connection to the rotary union connection and a fixed spray angle.
f-style
The f-style is similar to the h-style in its construction. The difference between them lies in its shallower installation depth of 24 mm measured from the nozzle connection to the rotary union connection.
s-style
This design features nozzle heads that can be adjusted, allowing a higher rotation speed depending on the angle chosen. It has an installation depth of 28 mm measured from the nozzle connection to the rotary union connection.
2-4 rotor arms
The standard range includes rotor arms with two, three or four arms and up to five nozzle outlets. Additional variations upon request.
Lengths
Mosmatic rotor arms come in many lengths. Standard lengths are 100-600 mm. Additional variations upon request.
Polished stainless steel (inox)
A strong and visually elegant design are a priority for all Mosmatic products. We use polished stainless steel (INOX) for all our products protecting them from rust and extreme weather conditions.
