Product Overview

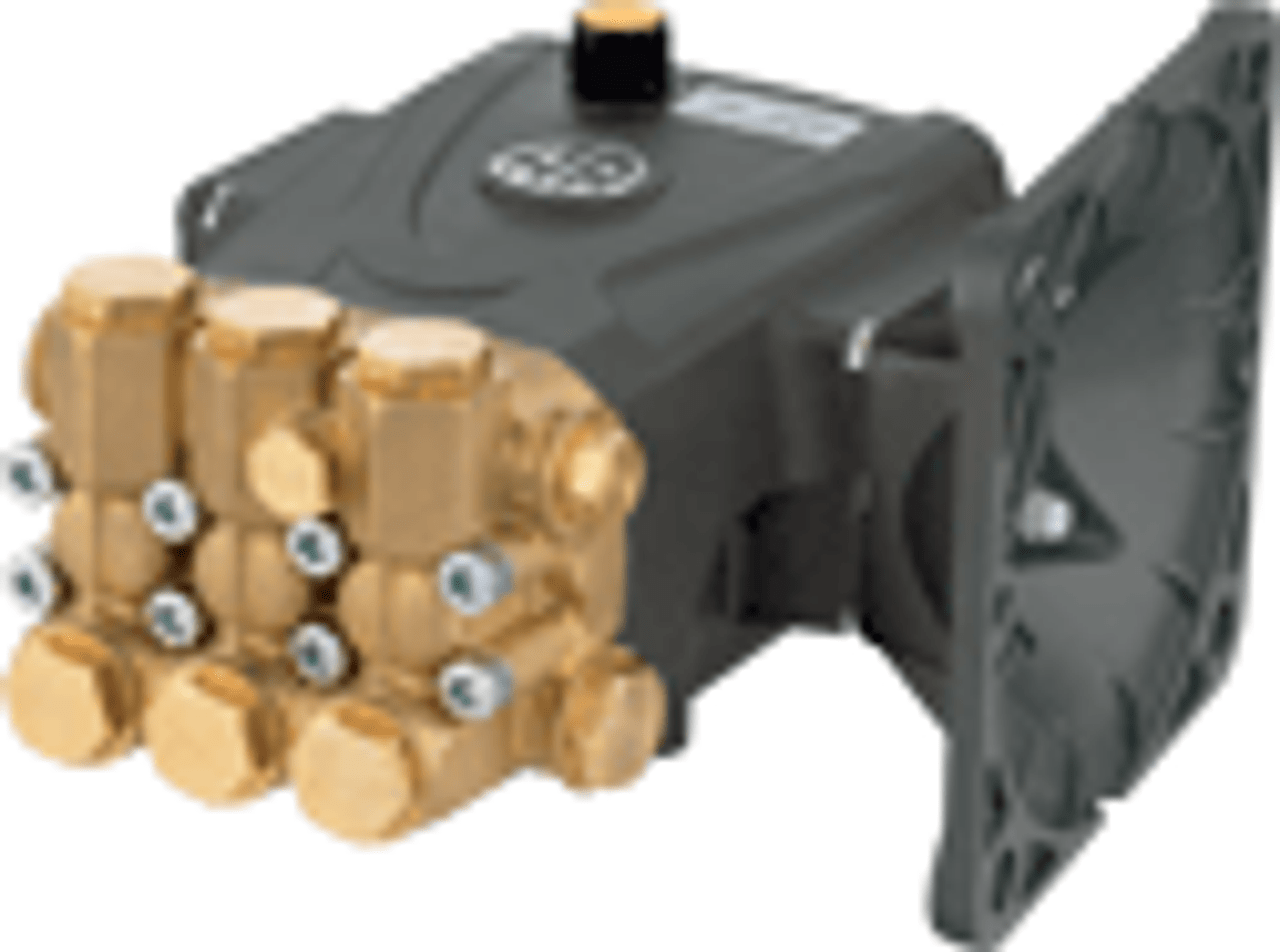

RRA 1750 rpm E Version 1-1/8" Hollow Shaft with F17 Flange, Model RRA3G30E-F17
These new pumps feature a new rod design, large side cover sight glass, ceramic plungers, high quality high-pressure seals, new, low-pressure seal with scraper (patented), two piece plunger guides, forged brass high efficiency head design and new styling. Flows to 5.5 GPM, Pressure to 3600 PSI, RPM 1450, 1750 & 3400. The pumps come in three drive types: 24mm solid, 1" and 1-1/8" hollow shaft. Drivers: electric, gasoline, hydraulic or diesel.
Specifications
- Max GPM ................. 3.0
- Max LMP............................. 11.4
- Max PSI..................... 3000
- Max Bar .............................. 207
- Power EBHP .............. 6.2
- Bore Dia. mm ........................ 18
- Stroke mm.................. 9.2
- Weight Lbs............................ 18
- Max Temp .................. 140°
- Oil Capacity.......................... 13.35oz
- Inlet Thread .............. 1/2”F
- Discharge Thread .................. 3/8”F
