Product Overview
Pro-Super Skid Tow-Pro Trailers - Gas Engine, 12V, V-Belt Drive Trailer Models
TR6012PRO-35HG, 5.5GPM @ 3500 PSI, GX630 Honda, HP Pump (w/o Hose)
TRAILER FEATURES
- 2- 250′ high pressure hose reels
- Chemical resistant coating
- 200 gallon water tank & Poly tool box
- Lights, jack, w/ wheel & safety chains
- Fully tested and assembled in the USA
- HD trailer (forkliftable) 3500# capacity axle, 135″L x 82″W x 60″H
- Aluminum fenders,15″ wheels/tires, external grease fittings.
PRO-SUPER SKID FEATURES
- Rugged powder coated steel burner frame
- Super efficient schedule 80 coil
- Stainless steel coil wrap, burner hood, and control panel
- On board 15 gallon poly fuel tank-Non-Carb Evaporative Compliant-Not for sale to California-See Options for California compliant upgrade
- Reliable Honda & Subaru gasoline Commercial/Industrial electric start engines
- Includes 12 volt battery and marine battery box
- Fully self-contained, no external power required
- Choice of reliable AR, Cat and General pumps
- Reliable Beckett burners
- Adjustable thermostat
- 3VX belt system offers balanced power transfer
- Engine and pump oil drains offer easy maintenance
- Safety pressure relief valve
NOTE: 12V units include 20 amp charging system. 115V units include 2500 watt generator.
NOTE: All units are completely factory assembled, tested in the USA, and delivered ready to operate.
HOSE OPTIONS
- AHS235 4000 PSI 3/8˝ X 100´ Black W/Qc’s
- AHS240 4000 PSI 3/8˝ X 150´ Black W/Qc’s
- AHS245 4000 PSI 3/8˝ X 200´ Black W/Qc’s
- AHS285 4000 PSI 3/8˝ X 100´ Gray W/Qc’s
- AHS290 4000 PSI 3/8˝ X 150´ Gray W/Qc’s
- AHS295 4000 PSI 3/8˝ X 200´ Gray W/Qc’s
- AHS335 6000 PSI 3/8˝ X 100´ Black W/Qc’ss
- 988VR-100 3/4˝ X 100´ HD Garden Hose
** Choose from drop down options above **
AVAILABLE OPTIONS
- KTF200 Float valve kit
- KAV001-I Air blowout valve/winterizing kit
- LWS100 Low water shut down
- TRL-BRK Electric brakes installed
- TRL-BBAK Electric brakes & breakaway installed
- P9000S: Wheel/Tire fits all Tow-Pro Trailers
- CCK015 On Board 15 Gal. Poly Fuel Tank w/ Carbon Canister- California Compliant Upgrade
** Pick and choose your options above **

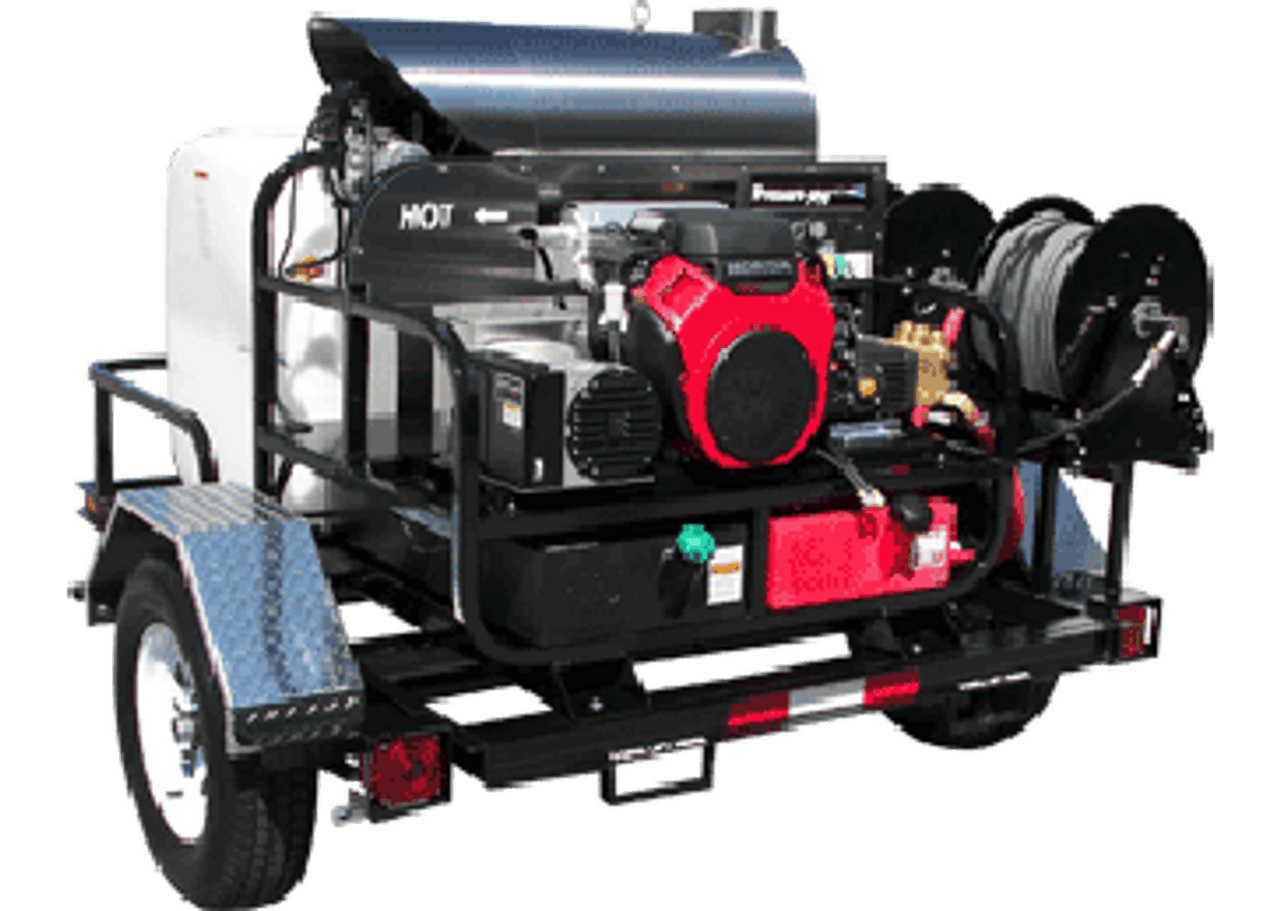

** Picture Shown my NOT be exact model, Multiple available options are shown in picture **
