TS2021 NICKEL PLT HEAD 5.6GPM 3500PSI 1450RPM

GP

(No reviews yet) Write a Review
MSRP: $1,013.38
$810.70
(You save $202.68 )
TS2021 NICKEL PLT HEAD 5.6GPM 3500PSI 1450RPM
SKU:
2012
Weight:
33.00 LBS
Adding to cart… The item has been added

Product Overview

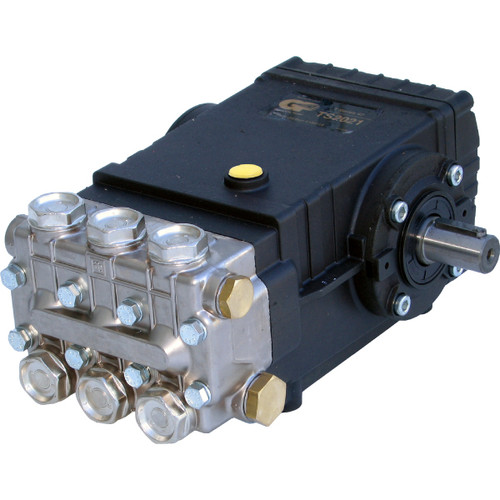

TS2021 NICKEL PLT HEAD 5.6GPM 3500PSI 1450RPM

FEATURES:
  • The preferred pump frame in the cleaning industry
  • Forged brass manifold with an exclusive lifetime warranty
  • Large capacity, die cast, anodized aluminum oil bath crankcase
  • Over sized connecting rods for maximum life
  • Heavy duty tapered roller bearing
  • Solid ceramic plungers with continuously lubricating packings
  • Unitized stainless steel inlet and discharge valves
  • Available in left handed "L" version

SPECIFICATIONS
  • Triplex Plunger Pump
  • Maximum Volume: 4.5/5.6 GPM'
  • Maximum Discharge Pressure: 3000/1700 PSI
  • Maximum Inlet Pressure: 125 PSI
  • Maximum Pump Speed: 1125/1450 RPM
  • Minimum Horsepower Requirements: 11.5 bhp (17.3 hp for gas engines)
  • Bore: .787" (20mm)
  • Stroke: .630" (16mm)
  • Crankcase Capacity: 40.6 oz. Nondetergent SAE 30W oil
  • Maximum Fluid Temperature: 165 degrees F.
  • Inlet Port Thread: 1/2" FPT
  • Discharge Port Thread: 3/8" FPT
  • Shaft Diameter: .945" (24mm)
  • Dimensions: 12.2" x 9.2" x 6.9"
  • Weight: 32 lb.

Lubrication: fill the crankcase to dot on oil gauge window per specifications with Nondetergent SAE 30W oil. Change oil after 40 hour break-in period, then every three (3) months or 500 hour intervals thereafter.
