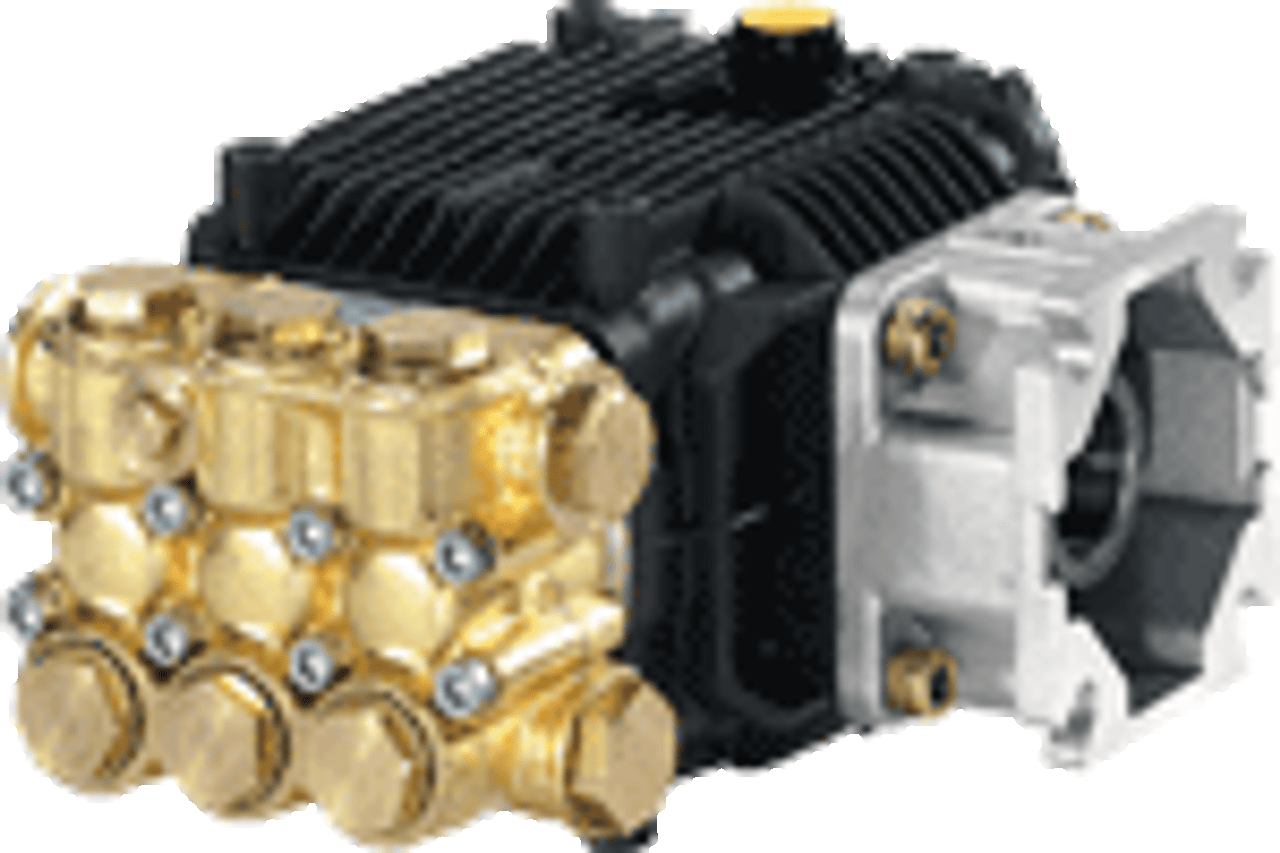

Product Overview
Plunger Pumps are designed for a wide variety of high pressure washing applications. They are constructed with die-cast bodies and feature a brass head. Internal components include special thick solid ceramic plungers for long life and durability. Precision cast cooling fins are anodized for maximum heat dissipation. Oversized needle bearings on the drive side, and ball on the nondrive side together with the precision supports assure positive alignment and centering in relation to the crankcase. Valve cages of special designed Ultra-Form provide positive seating and extended life. Ball bearings on both sides of solid shaft drive pumps. One-piece connecting rods are special alloy aluminum, oversized for strength and load disbursement. These pumps are designed for gearbox , belt drive, or coupling drive systems driven by eletric motor or gasoline driven systems, gasoline engine driven systems.
Specifications
- Max GPM ................. 3
- Max LMP............................. 11.4
- Max PSI..................... 2500
- Max Bar .............................. 170
- Power EBHP .............. 5
- Bore Dia. mm ........................ 15
- Stroke mm.................. 7.6
- Weight Lbs............................ 15
- Max Temp .................. 140°
- Oil Capacity.......................... 14.6oz
- Inlet Thread .............. 1/2”F
- Discharge Thread .................. 3/8”F
