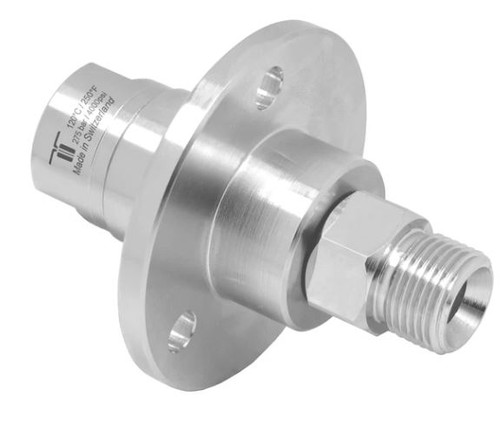

Product Overview
High pressure cleaning technology, parts washers, tire cleaners, self rotating applications
- High speed triple bearing system
- Body design for easy installation
- High precision and quality
- Maintenance free
G1 3/8”NPTF, G2 G3/8”M, NW 1/4”, SW1 0.87, SW2 0.75, L1 1.49, L2 0.39, Weight 11.6 oz
Technical data
- Pressure: 4000 psi(27.5 MPa)
- Temperature: 90°F(at 1’000 rpm), 250°F (at 30 rpm)
- RPM: max. 1’000 rpm)
- Body: brass, nickel plated/li>
- Inner part: Stainless steel
- Seal: O-ring NBR (optional: EPDM or FKM)
- Bearing: 2x radial ball bearings, 1x thrust ball bearing
- Throughput: pH 3-12
- Medium: filtered 10 microns, compressed air (290 psi)
