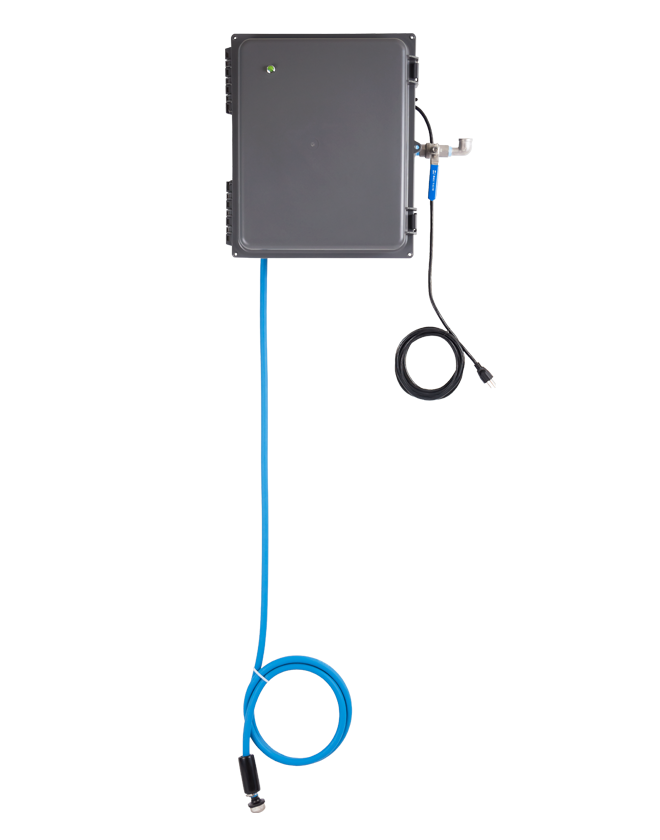

Product Overview
A
product.
product.- Draws from pre-mixed solution
- Powered by compressed air and electricity
- Quick-change pump
- Single shot timer with delay on make
- With FG-NA-N130 nozzle assemblies:
- 15 micron size
- Polypropylene and Kynar nozzle construction
- Up to 20 nozzles per control box
- With FG-NA-26SS nozzle assemblies:
- 35 micron size
- Celcon, stainless steel, EPDM, and nylon nozzle construction
- Up to 12 nozzles per control box
| COMPRESSED AIR REQUIREMENTS | WITH FG-NA-N130 NOZZLES: At factory air pressure setting of 50 psi (3.4 bar): 2 cfm (56.6 l/min) for control box, plus 2.5 cfm (70.8 l/min) per nozzle Maximum incoming air pressure: 150 psi (10.3 bar) WITH FG-NA-26SS NOZZLES: At factory air pressure setting of 50 psi (3.4 bar): 2 cfm (56.6 l/min) for control box, plus 5 cfm (142 l/min) per nozzle Maximum incoming air pressure: 150 psi (10.3 bar) |
|---|---|
| LIQUID TEMPERATURE RANGE | 40-100ËšF (4.4-37ËšC) |
| ELECTRICAL REQUIREMENTS | 120 VAC at 60 Hz, 2 amps (GFCI protected outlet) |
| OPERATING VOLTAGE | 120 VAC |
| CHEMICAL COMPATIBILITY | Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or MSDS for your product or contact our customer service department. |
| POWER TYPE | Compressed air, electricity |
|---|---|
| CHEMICAL PICKUP TYPE | Draws from pre-mixed solution |
| NUMBER OF PRODUCTS UNIT CAN DRAW FROM (AND WHETHER IT DRAWS SIMULTANEOUSLY OR ONE AT A TIME) | One product |
| SUCTION LINE LENGTH/DIAMETER | 8 ft. (2.4 m) hose with 3/8 in. (9.5 mm) inside diameter |
| FLOW RATE* | WITH FG-NA-N130 NOZZLES: 7.9 oz/min (0.23 l/min) WITH FG-NA-26SS NOZZLES: 5.3 oz/min (0.16 l/min) |
| PUMP SEALS | Santoprene, Viton, or Kalrez |
| NOZZLE CONSTRUCTION | WITH FG-NA-N130 NOZZLES:Polypropylene and Kynar WITH FG-NA-26SS NOZZLES: Celcon, stainless steel, EPDM and nylon |
| TIMER OPERATION TYPE | Delay on make single shot |
| DROPLET SIZE | WITH FG-NA-N130 NOZZLES: 15 micron at 50 psi (3.4 bar) WITH FG-NA-26SS NOZZLES: 35 micron at 50 psi (3.4 bar) |
| COVERAGE AREA | 1 liter of solution will cover approximately 1000 cubic feet** |
| COVERAGE PATTERN | WITH FG-NA-N130 NOZZLES: Flat pattern with projection up to 10 ft. (3 m) from nozzle WITH FG-NA-26SS NOZZLES: Pattern up to 8 ft. (2.4 m) wide (side to side) and 3 ft. (0.9 m) thick (top to bottom), with projection up to 15 ft. (4.6 m) from nozzle |
| NUMBER OF NOZZLES*** | WITH FG-NA-N130 NOZZLES: 1-20 nozzles per control box WITH FG-NA-26SS NOZZLES: 1-12 nozzles per control box |
| TUBING/FITTING SIZES | Designed for use with 3/8 in. (9.5 mm) outside diameter tubing between control box and nozzle(s) |
*Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
**Area covered and run time may vary based on humidity, air flow, and product used.
***Number of nozzles is dependent upon air supply (see Compressed Air Requirements)
